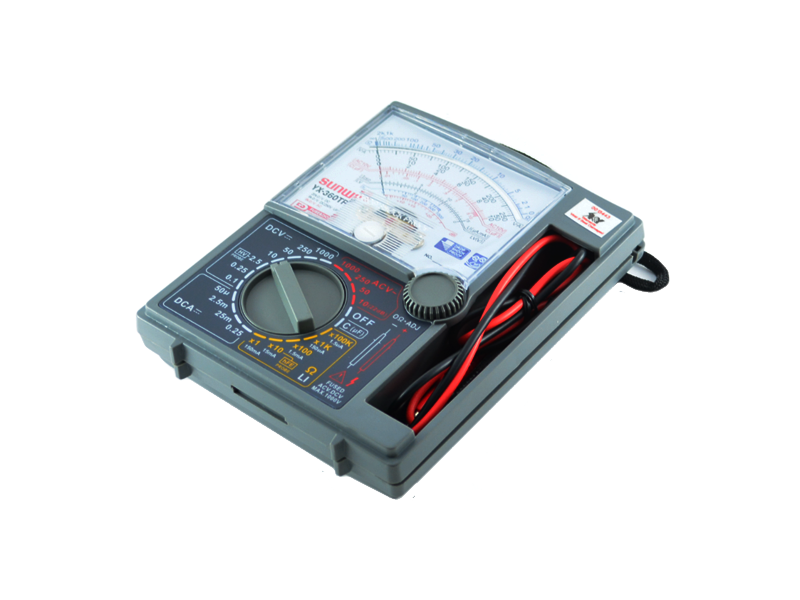

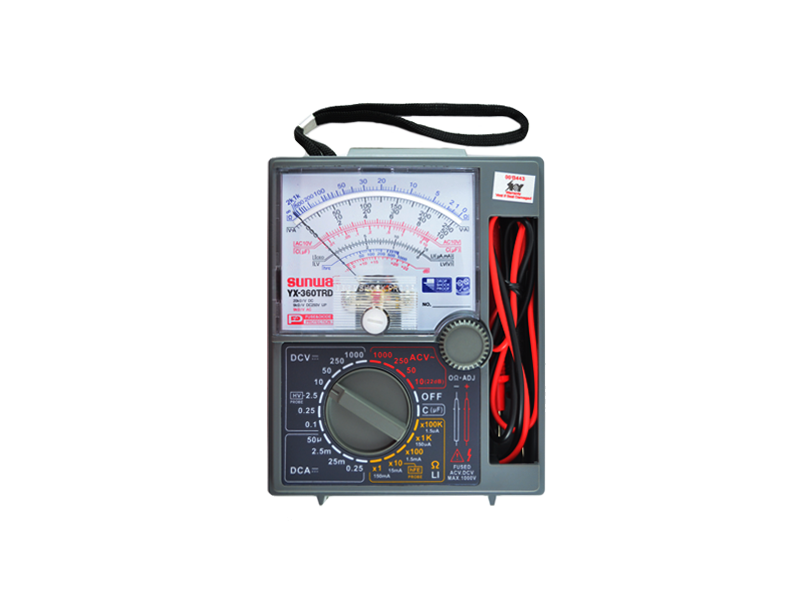

Product details of YX-360TRD Analog MultiMeter / 360 TRD Multi Meter
- Measured AC/DC voltage, DC current and current resistance.
- It is widely used in factories, school laboratories, family hobbies, machinery maintenance, etc.
- The twisted pair is a color coded test lead.
- The high-sensitivity induction coil can sense the passing weak current.
- Knob operation, analog display.
- texture of material; abs
- Fall shockproof
- YX-360TRD (20 gear/OFF gear) main technical parameters
- measuring range
- DC voltage 0~0.1~0.25~2.5~10~50~250~1KV (sensitivity 20K Ω/V accuracy 3.0)
- AC voltage 0~10~50~250~1KV (sensitivity 9K Ω/V accuracy 4.0)
- DC current 0~50 μ A~2.5~25~250mA (precision 3.0)
- Resistance × 1~ × 10~ × 1K~ × 100K Ω (precision 3.0 arc length)
- Audio level – 10~+22dB
- Capacitance (C) 0~10 μ F
- Protection function 0.5 A fuse
- Diode (LI) 0~1.5~150 μ A~~15~150mA
- Working power supply: 2 x 1.5V batteries (batteries excluded)
- Overall dimension 160 × one hundred and thirty × 42 mm
- Weight 275g
- Operating environment: 0~40 ℃, 25%~80% RH
