| Technical Specifications | |
|---|---|
| Cable Construction | |
| Conductor | |
| Material | Stranded Anneal Copper Wire |
| Wire Size | 24AWG |
| Insulation | |
| Material | HDPE, FRPE |
| Thickness | min AVG 0.18mm |
| Diameter | 0.97mm |
| Colors | Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown |
| Jacket | |
| Material | PVC |
| Thickness | Nom. 0.59mm |
| Diameter | 5.50 ±0.2mm |
| Colors | Gray | Blue | Yellow | Red | Green | Orange | Purple | Black | White |
| Flame rating | CM Style |
| Maximum Tensile Strength | 1.05 kgf/mm2 |
| RJ45 Plug | |
| Housing | Polycarbonate |
| Contacts | Copper alloy 50u” gold plated over nickel |
| Strength | 20lbs. min |
| Durability | 750 cycles min. |
| Boots | Molded boots prevent pin from bending and cables from kink |
| Electrical | |
| Impedance | 93.8Ω ± 15 Ω |
| Capacitance unbalance pair to ground | max. 330pf/100m Max |
| D.C.R (Max.) | nom. 14.8 ohm/100m at 20℃ |
| DC Insulation Resistance | 500MΩ/100m min. |
| Resistance unbalance | 3% MAX./100m |
| Dielectric Strength | AC-500V/1 Min |
Network, Network Cables

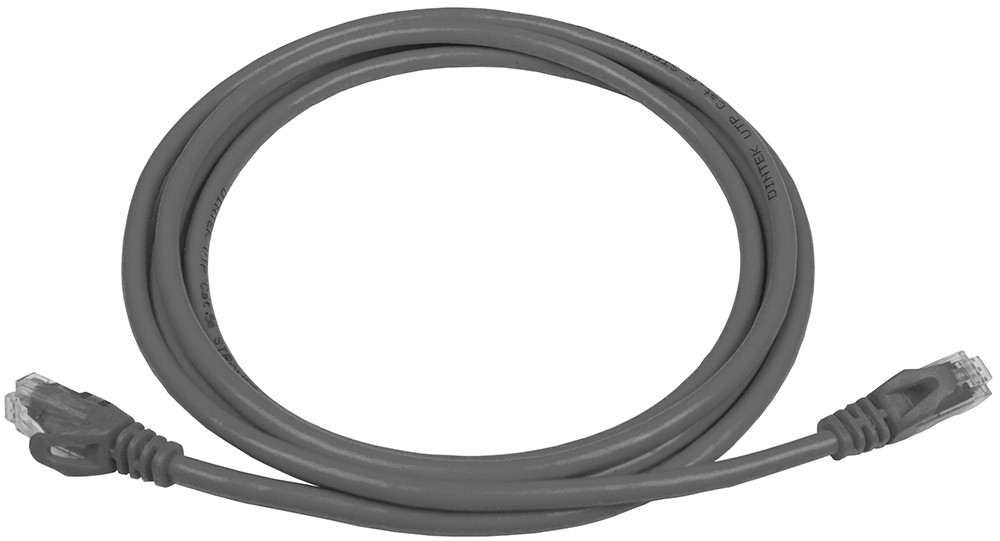

Dintek CAT. 5E 3M GREY PATCH CORD
Dintek CAT. 5E 3M GREY PATCH CORD
රු1,600.00
Based on 0 reviews
Be the first to review “Dintek CAT. 5E 3M GREY PATCH CORD”
