| Technical Specifications | |
|---|---|
| Construction | |
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 24AWG |
| Strand Type | Solid Core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | Polyethylene |
| Diameter | 0.90mm ± 0.05mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Pair Foil Wrap | None |
| Jacket | |
| Material | PVC |
| Diameter | 5.2mm ± 0.3mm |
| Color | Gray |
| Jacket Rating | CM |
| Foil Shield | None |
| Braided Shield | None |
| Physical Ranges | |
| Jacket | |
| Cold Bend Test | -20 ± 2°C x 4hrs no crack |
| Min. Bending Radius | Min. 4 x Cable Diameter |
| Max. Pulling Tension | 110N |
| Installation Temperature | 0°C to +50°C |
| Operating Temperature | -20°C to +60°C |
| Electrical | |
| Conductor Resistance | Max. 9.38 Ω/100m at 20°C |
| DC Resistance Unbalance | Max. 2% at 20°C |
| Pair-to-Ground Capacitance Unbalance | Max. 160 pF/100m at 1 kHz |
| Dielectric Strength of Insulation | DC 1 KV for 1 min |
| Insulation Resistance Test | Min. 5000 MΩ/Km at 20°C |
| Mutual Capacitance | Max. 5.6 nF/100m at 1 kHz |
| Impedance 1 ~ 100Mhz | 100Ω ± 15% |
| Nominal Velocity Of Propagation | 67% |
Network, Network Cables

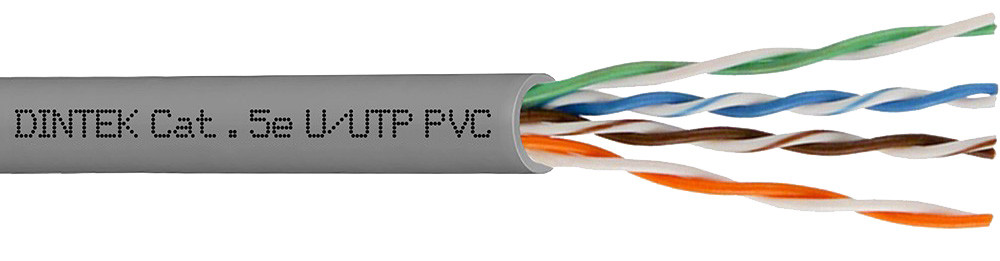

CAT. 5E UTP CABLE-GREY 305MT Box
CAT. 5E UTP CABLE-GREY 305MT Box
රු70,550.00
Based on 0 reviews
Be the first to review “CAT. 5E UTP CABLE-GREY 305MT Box”
