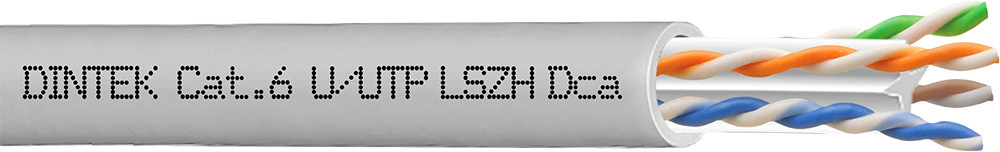

Dintek CAT 6 4P U/UTP 23AWG, LSZH GRAY 305M BOX
,

Dintek CAT 6 4P U/UTP 23AWG, LSZH GRAY 305M BOX

Dintek CAT. 6A S/FTP CABLE-GREY LSZH 305MT DRUM 23AWG

රු76,500.00

Technical Specifications
Construction
Conductor
Material Pure Annealed Copper
Wire Size 23AWG
Strand Type Solid Core
No. Of Pairs 4P
Insulation
Material Polyethylene
Thickness 0.21mm ± 0.01mm
Diameter 0.98mm ± 0.05mm
Colors Blue/White | Orange/White | Green/White | Brown/White
Pair Foil Wrap None
Jacket
Material LSZH
Thickness 0.425 mm ± 0.025mm
Diameter 5.70mm ± 0.3mm
Color Gray
CPR Reaction To Fire Classification Dca,s2,d2,a1
Foil Shield None
Braided Shield None
Physical Ranges
Jacket
Cold Bend Test -20 ± 2°C x 4hrs no crack
Min. Bending Radius Min. 4 x Cable Diameter
Max. Pulling Tension 110N
Installation Temperature 0℃ to +50℃
Operating Temperature -20℃ to +60℃
Electrical
Conductor Resistance Max. 9.38 Ω/100m at 20°C
DC Resistance Unbalance Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation DC 1.0 KV for 1 min
Insulation Resistance Test (500V) Min. 5000 MΩ/Km at 20°C
Mutual Capacitance Max. 5600 pF/100m at 1 kHz
Impedance 1 ~ 250Mhz 100Ω ± 5%
Nominal Velocity Of Propagation 67%
SKU: 1101-04046 Categories: , Brand:
